Laser Coding Machines
Leave Your Mark, Instantly & Permanently!
Provide high-precision solutions for industries requiring serial numbers, barcodes, dates, and logos on products or packaging. Focused laser beams deliver durable, high-quality engravings on materials such as metal, plastic, glass, and paper. Ideal for manufacturing, pharmaceuticals, electronics, and packaging. Ensure fast, contactless, and maintenance-free operation, enhancing efficiency and traceability.

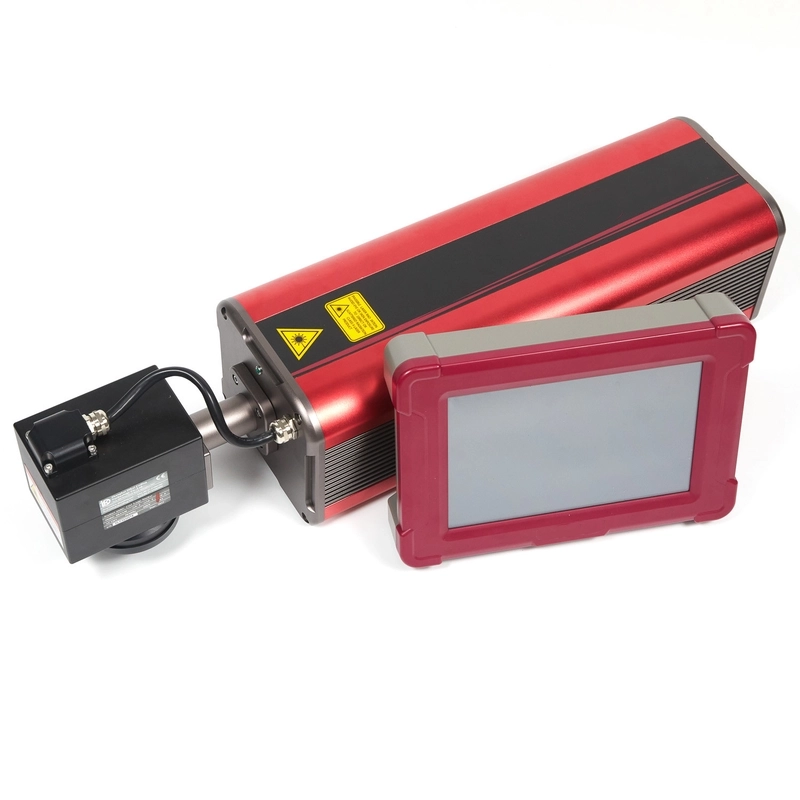

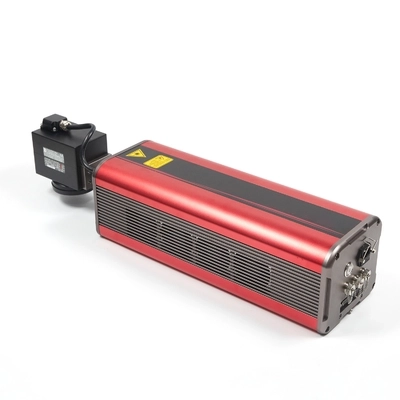

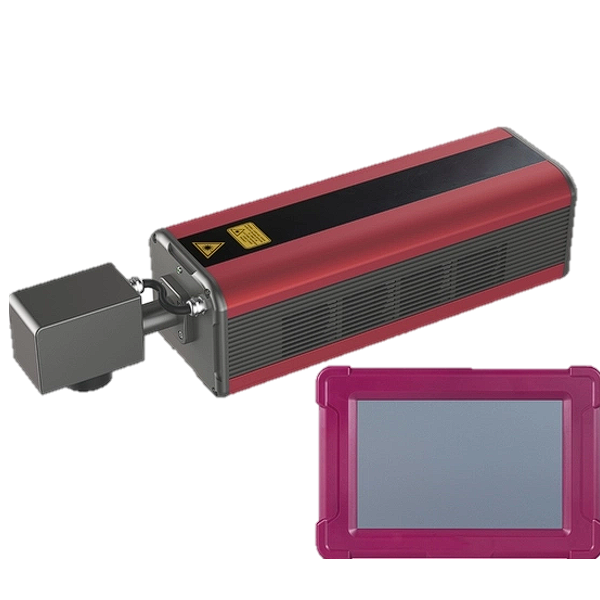

CO2 Laser Marking Machine
  • Gas laser with a wavelength of 9.3μm,10.2μm,10.6μm in infrared band
  • Mostly used for non-metal marking such as wood, acrylic and leather
  • has fast processing speed, uniform processing quality, long service life and high conversion efficiency
Product Specifications Table
Comparison of DLC130 and DLC150 Laser Printer Models
Model DLC130 DLC150
Application Paper Carton, Glass, PET Bottles, Aluminum-composite films, etc.
Scan mode X,Y axial simultaneous scan
Marking mode Flying mark 150m/min 300m/min
Static mark Multiple products can be mark simultaneously
Marking laser Type CO2 Laser
Wavelength 9.3μm, 10.2μm, 10.6μm
Output 30W 60W
Guide laser Red light positioning
Marking area 50*50, 70*70, 90*90, 110*110, 140*140, 175*175, 210*210, 250*250, 300*300, 400*400, 500*500mm, etc.
Focal distance 75, 100, 130, 150, 200, 250, 300, 355, 435, 585, 720mm
Scan speed ≤12000mm/s
Software controller Linux system, 10 inch touch screen
Character type Fonts Single/Double font, Dot-matrix font
Bar code Code39/Code25/EAN-13/Code128, etc.
QR code PDF147/QRCODE/DATAMATRIX
Graphic DXF/PLT format vector image input/output
Marking condition Marking status Operation, Preparation, Error status
Character size 0.8mm~Max Marking Area
Input/Output Two-way input/Three-way Output, support custom
Connection SD card/USB 2.0/Communication interface
Laser installation direction Arbitrary direction
Cooling Air cooling
Power & Temp Supply voltage 100-220V AC, 50-60Hz
Power 750W
Working temp 5-40℃
Working humidity 10%-90%(non-condensation)
IP rate IP54, IP65 optional IP54
Weight Laser printer: 16KG; Controller: 1.7KG; Laser printer: 16KG; Controller: 1.7KG;
Dimension Specification Laser printer: 716mm*176mm*178mm; Controller: 305mmx207mmx56mm; Laser printer: 877mm*136mm*179mm; Controller: 305mmx207mmx56mm;
*Note: Marking speed depends on packaging material and print content.

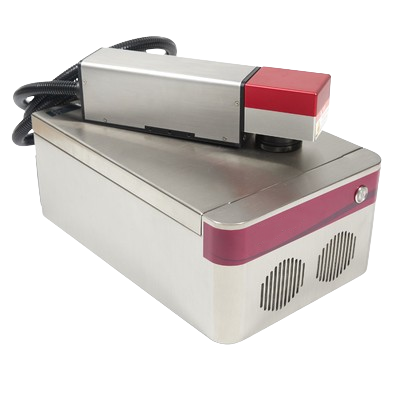

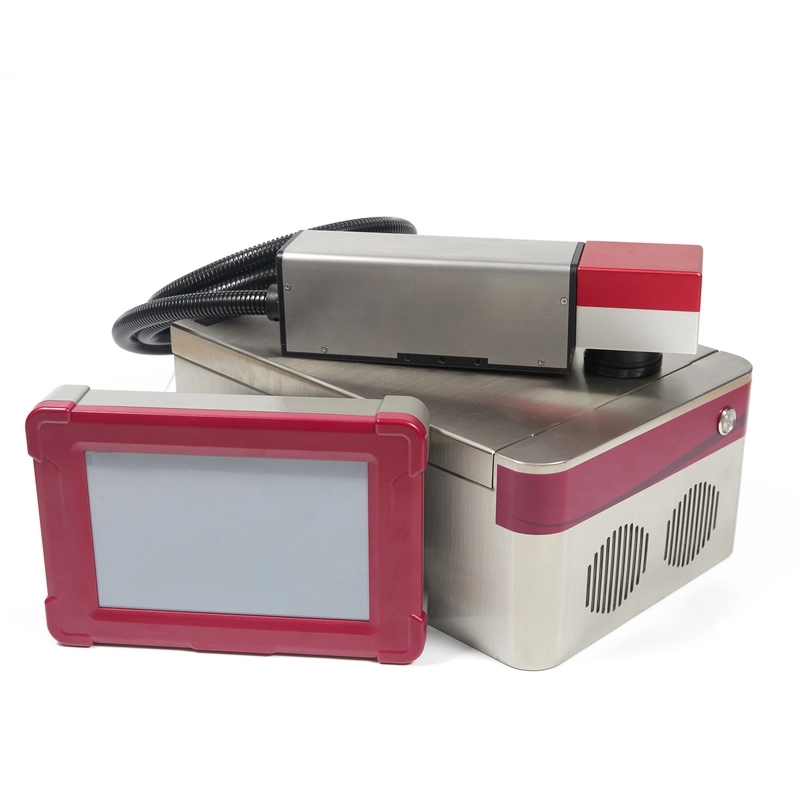

Fiber Laser Marking Machine
  • Compact size, lower maintenance, no consumables coding system
  • Provides permanent & high quality coding
  • Adopts intelligent vector control algorithm, marking speed is greatly improved
  • Very suitable for the mark on films of flexible packaging
  • Commonly used in food, cosmetics and other industries to print high contrast and permanent message & logo on hard plastic, metal and other materials
Model DLF200 DLF300
Application Food&Beverage, Tubes, Metal, Electronics, Pharmaceutical, etc.
Scan mode X.Y axial simultaneous scan
Marking mode Flying mark 120m/min 200m/min
Static mark Multiple products can be mark simultaneously
Marking laser Type Fiber Laser
Wavelength 1064nm
Output 20W 30W
Guide laser Red light positioning
Marking area 110*110, 150*150, 175*175
Focal distance 163, 210, 254mm
Scan speed ≤8000mm/s
Software controller Linux system, 10 inch touch screen
Character type Fonts Single/Double font, Dot-matrix font
Bar code Code39/Code25/EAN-13/Code128, etc
QR code PDF147/QRCODE/DATAMATRIX
Graphic DXF/PLT format vector image input/output
Marking condition Marking status Operation, Preparation, Error status
Character size 0.1mm~Max Marking Area
Input/Output Two-way input/Three-way Output, support custom
Connection SD card/USB 2.0/Communication interface
Laser installation direction Arbitrary direction
Cooling Air cooling
Power & Temp Supply voltage 100-220V AC, 50-60Hz
Power 300W
Working temp 0-40°C
Working humidity 10%-90%(non-condensation)
IP rate IP54
Weight Laser body: 3.0KG; Controller: 1.7KG
Dimension Specification Laser body: 354mm*79mm*95mm;
Controller Screen: 305mmx207mmx56mm;
Controller box: 450mm*300mm*180mm;
*Note: Marking speed depends on packaging material and print content.
Model DLF200 DLF300
Application Food&Beverage, Tubes, Metal, Electronics, Pharmaceutical, etc.
Scan mode X.Y axial simultaneous scan
Marking mode Flying mark 120m/min 200m/min
Static mark Multiple products can be mark simultaneously
Marking laser Type Fiber Laser
Wavelength 1064nm
Output 20W 30W
Guide laser Red light positioning
Marking area 110*110, 150*150, 175*175
Focal distance 163, 210, 254mm
Scan speed ≤8000mm/s
Software controller Linux system, 10 inch touch screen
Character type Fonts Single/Double font, Dot-matrix font
Bar code Code39/Code25/EAN-13/Code128, etc
QR code PDF147/QRCODE/DATAMATRIX
Graphic DXF/PLT format vector image input/output
Marking condition Marking status Operation, Preparation, Error status
Character size 0.1mm~Max Marking Area
Input/Output Two-way input/Three-way Output, support custom
Connection SD card/USB 2.0/Communication interface
Laser installation direction Arbitrary direction
Cooling Air cooling
Power & Temp Supply voltage 100-220V AC, 50-60Hz
Power 300W
Working temp 0-40°C
Working humidity 10%-90%(non-condensation)
IP rate IP54
Weight Laser body: 3.0KG; Controller: 1.7KG
Dimension Specification Laser body: 354mm*79mm*95mm;
Controller Screen: 305mmx207mmx56mm;
Controller box: 450mm*300mm*180mm;
*Note: Marking speed depends on packaging material and print content.

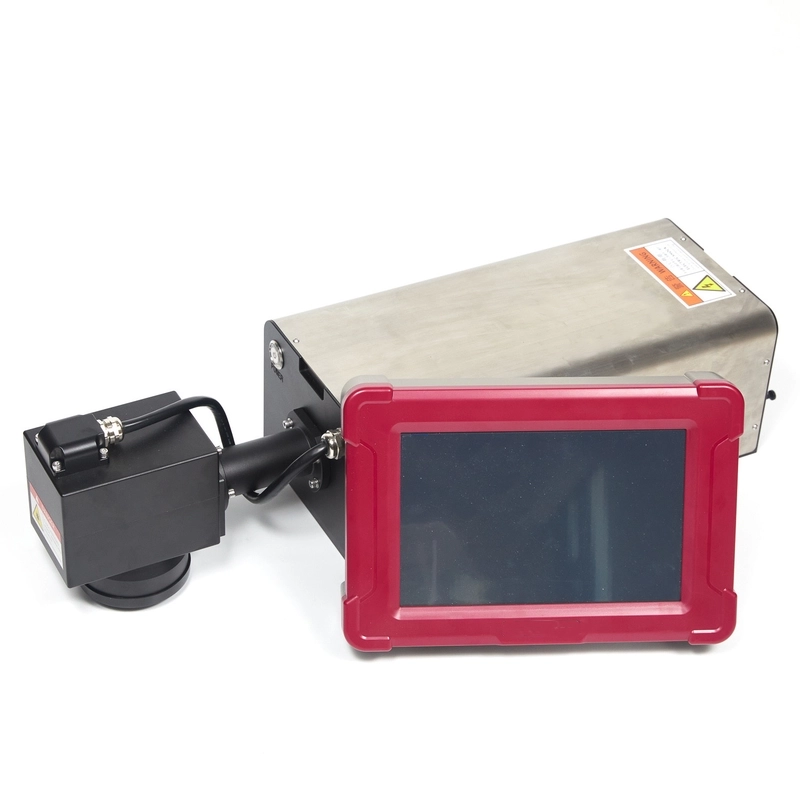

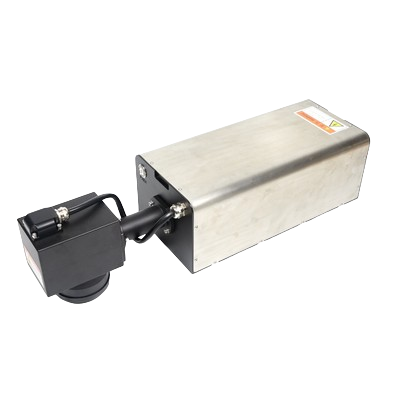

Ultraviolet Laser Coding Marking Machine
  • Compact size, low maintenance, no consumable
  • Permanent, high-grade readable codes regardless of product positioning
  • Print up to 700 characters per second
Model DLU500i
Application HDPE, LDPE, such as food, pipes, chemical products etc.
Scan Mode X, Y axial simultaneous scan
Laser Laser Type UV Laser
Wavelength 355nm
Output 5W
Marking area 70*70, 110*110, 90*90 800*800mm optional
Focal Distance 135, 218, 165 1250mm optional
Scan Speed <=8000mm/s
UI 10.1 inch Color Touch Screen, QWERTY or AZERTY Virtual Keyboard, Quick Icon Wizard Operations
Character Type Font Single/Double Font, Dot matrix font
Bar Codes Code39/Code25/EAN-13/Code128 etc.
QR Codes PDF147/QRcode/DATAMATRIX
Graphic DXF/PLT format vector image input/output
Variable Data Serial Number, Text, Date, Time, Counter, Shift Code
Marking Condition Static mark Multiple products can be mark simultaneously
Character Size 0.1mm-Maximum marking area
Input/Output Sensor/Encoder
Interface SD card/USB2.0/communication interface
Laser Installation Direction No Limited
Cooling Water-cooling
Power & Temp Supply Voltage 110-220V, 50-60Hz
Power 600W
Working Temp 10-30°C
Environment Resistance Storage Temp -10C-45°C (no freeze)
Storage Humidity 10%-85% (non-condensing)
IP Rate IP54, IP65 optional
Pollution Degree No chemicals are produced
Dimension Weight UV Laser printer 20.8kgs; water cooling machine 24kgs
Specification 85cm*44cm*31cm; 65cm*36cm*56cm
